Category: Atlas bipods & accessories

Atlas Bipods & Accessories.

Here at J&A Outdoors Firearm Solutions we carry Atlas Bipods in a variety of configurations along with a wide assortment of Accessories.

Atlas Bipod Models:

V8 – BT10 and BT-LW17

PSR – BT46-LW17 (Standard height) as well as the BT47-LW17 (Tall Height)

Atlas Accessories:

BT1517-Bipod rail fastener kit

BT15-3.35” bipod rail

BT17-4” bipod rail

BT22-3″ Leg extensions

BT32-Rubber feet

BT64-Spiked cleat feet

BT74-Raider cleat feet

Atlas warranty:

Atlas strives to build the best products with durability and longevity in mind, life happens: things break. So they offer the following warranty:

If you own an authentic B&T/Atlas product and it
breaks – or in the event that YOU break it, we’ll repair or replace it.

This applies to the authentic, made in America B&T/Atlas products including those that have been refinished then assembled with the atlas proof mark. If you or someone else disassembled, coated, then reassembled the product that broke, Atlas will repair it for $75.00 plus parts minimum.

Please Note: B&T Industries LLC’s warranty does not apply to counterfeit, copy, fake or knockoff Atlas Bipods.

Showing all 21 results

BT47-LW17 PSR Atlas Bipod
$374.95
BT47-LW17 PSR Atlas Bipod: Tall with ADM 170-S Lever

The BT47-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

The PSR series of Atlas Bipods were developed for the SOCOM PSR (Precision Sniper Rifle) Weapons System (BT46-LW17 was selected for SOCOM PSR).

Height Range: 6.4 – 12.8″ (8.5” at 90°)

Preloaded Pan: 30 degrees

Preloaded Cant: 30 degrees

Position Button 0.5″ diameter

Fore and Aft pivot limiting Bosses

5 leg positions: 0, 45, 90, 135 & 180 degrees

Non-Rotating Legs: outer leg does not rotate around inner leg

Larger, stronger inner legs

Weight: 15.13 ounces approx.

Footprint: 10-14.5″
Read more
BT46-LW17 PSR Atlas Bipod
$354.95
BT46-LW17 PSR Atlas Bipod: Standard height with ADM 170-S Lever

The BT46-LW17 PSR (Precision Sniper Rifle) Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum, except the strengthened inner legs which are made from 7075-T6 aluminum that are Mil-Spec Type III hard coat anodized and have heat treated, stainless steel components. Available in black only.

Selected for the SOCOM PSR (Precision Sniper Rifle) Weapons System. NSN 1005-01-663-0038

Height Range: 5.2 – 9.6″ (6.8” at 90°)

Preloaded Pan: 30 degrees

Preloaded Cant: 30 degrees

Position Button 0.5″ diameter

Fore and Aft pivot limiting Bosses

5 leg positions: 0, 45, 90, 135 & 180 degrees

Non-Rotating Legs: outer leg does not rotate around inner leg

Larger, stronger inner legs

Weight: 13.61 ounces approx.

Footprint: 8–11″
Read more
BT10 V8 Atlas Bipod
$229.95

[embed]https://youtu.be/CzIhQ-_JEhs[/embed]
Add to cart
BT10-LW17 V8 Atlas Bipod
$294.95
BT10-LW17 V8 Atlas Bipod

The BT10-LW17 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.

NSN 1005-01-623-6257

Height Range: 5.2 – 9.6″ (6.8” at 90°)

Preloaded Pan: 30 degrees

Preloaded Cant: 30 degrees

Position Button 0.36″ diameter

5 leg positions: 0, 45, 90, 135 & 180 degrees

Weight: 12.7 ounces approx.

Footprint: 8–11″
Read more
BT74: Atlas Raider Cleat Feet
$64.00

BT74: Atlas Raider Cleat Feet

The BT74 Atlas Raider Cleat Feet are turned from 303 Stainless Steel bar stock in one piece for strength and durability. They will fit V8, PSR and CAL model Atlas Bipods, as well as adaptors that use our feet. Easily installed with the press of a stainless steel plunger.

The Cleat portion is approximately 0.75” long with the largest outer diameter of approximately 1.155”. Sold as a pair. Available in raw stainless steel only.

Total Weight of Pair: 2.65 ounces

Product will work on V8, PSR and CAL models only.

Read more
Sale!

4.5” Bipod Picatinny Mount
$6.99 – $42.00
MADE IN THE USA!

4.5” Bipod Picatinny Mount.

Constructed from Billet Aluminum.

1 ounce weight

QD Cup machined into the mount along with sling swivel stud.

This 4.5” picatinny bipod Rail will accommodate hole patterns with a center to center spacing of 2.2 – 3.5″ with a Semi Rounded Bottom to accommodate many chassis/surfaces.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

3.5” Bipod Picatinny Mount
$6.99 – $34.99
3.5” Bipod Rail MADE IN THE USA!

Sling stud or Quick detach cups integrated into the rail.

3.50 inch overall length

This 3.5” picatinny bipod Rail will accommodate hole patterns with a center to center spacing of 1.25”– 2.5″ with a Semi Rounded Bottom to accommodate many chassis/surfaces.

weight is .60 ounces.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

2.5” Bipod Picatinny Mount
$6.99 – $23.99
2.5” Bipod Rail MADE IN THE USA!

Sling stud integrated into the rail.

2.50-inch overall length

This 2.5” picatinny bipod Rail will accommodate hole patterns with a center to center spacing of .650”– 1.650″

Semi Rounded Bottom to accommodate many chassis/surfaces.

weight is .40 ounces.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

2.0” Bipod Picatinny Mount
$6.99 – $23.99
2.0” Bipod picatinny mount adapter MADE IN THE USA!

Sling stud integrated into the rail.

2.00-inch overall length

This 2.0” picatinny bipod Rail will accommodate hole patterns with a center to center spacing of .650”– 1.025″ with a Semi Rounded Bottom to accommodate many chassis/surfaces.

weight is .30 ounces.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

Arca – Picatinny Mount
$5.99 – $59.99

Made in the USA by hard working Americans!

10-32 fasteners included with Tee nuts.

Select options This product has multiple variants. The options may be chosen on the product page
Sale!

Arca Pic Picatinny QD Mount
$59.99 – $69.99
Made in the USA by hard working Americans!

Arca – picatinny mount, 1 rail with dual use!

Rounded bottom design (fits flush with rifle stock).

4.50 inch Overall Length.

Bolt/mount spacing: 2.5” to 3.35”.

Weight is 1.6 oz!

Integrated Sling stud with two QD sling ports.

1.5 inches of arca rail and 1.0 inches of picatinny rail.

10-32 fasteners included with Tee nuts.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

Mini Arca Rail Mount
$31.99 – $39.99
Made in the USA by hard working Americans!

1.50” arca rail Rifle Mount.

Billet aluminum construction.

Black, FDE, OD Green, bronze or tungsten cerakote available!

Semi Rounded bottom to accommodate many stock designs

Weight: .50 ounces.

Compatible with Arca Swiss style tripod heads.

Overall length: 1.50” OAL

Bolt/Mount spacing .850 inches.

10-32 fasteners with tee nuts included for installation.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

3” Arca Rail Mount
$45.00 – $49.99
Made in the USA by hard working Americans!

3” arca rail Rifle Mount.

Billet aluminum construction.

Anodized black.

Flat bottom with a small radius in the center to accommodate a multitude of stock designs.

Weight: .80 ounces.

Compatible with Arca Swiss style tripod heads.

Overall length: 3.0” OAL

Bolt/Mount spacing up to .70 to 2.250 inches.

10-32 fasteners with tee nuts included for installation.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

4” Arca Balance Rail Mount
$44.99 – $55.00
Made in the USA by hard working Americans!

4” arca balance rail mount.

Semi rounded bottom center cut to allow for mounting on multiple stocks/chassis.

Available in Black, Bronze, FDE, OD Green & Tungsten Finishes.

Perfect balance point for mounting just forward of front action screw.

Billet aluminum construction.

Weight: 1.10 ounces.

Compatible with Arca Swiss style tripod heads.

Overall length: 4.0” OAL

10-32 fasteners with tee nuts included for installation.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

Arca Picatinny Hybrid Rail Mount
Original price was: $119.99.Current price is: $104.99.
Made in the USA by hard working Americans!

Semi Rounded bottom to fit many different variations of stocks.

Integrated Sling Stud & QD Cup.

Each Arca picatinny hybrid rail comes with 4 sets of 10-32 screws and Tee nuts.
Select options This product has multiple variants. The options may be chosen on the product page
Sale!

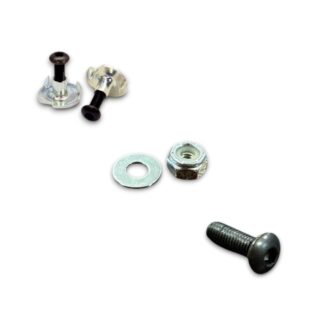

Rail Mounting Fastener Set
Original price was: $10.00.Current price is: $5.99.

Rail Mounting Fastener Set

(Screw head can change from Torx to Hex. Subject to availability)

Rail Mounting Fastener Set is used for mounting 1913 rails or Arca Mounts that consists of two (2) 10-32 T-Nuts and two (2) 10-32 x ¾” Screws. Sold as a pair.

Weight: 0.4 ounces

Add to cart
Atlas BT81 LIL’ BRANDI
$49.99

Atlas BT81 LIL’ BRANDI The BT81 Lil’ Brandi is our long-awaited answer to getting a 1913 Picatinny Rail mounted on a traditional rifle stock without taking the rifle apart, drilling holes or damaging the stock. Installation utilizes the existing sling stud and provided cross pin, set screw and hex wrench. It features 3 usable slots …

Atlas BT81 LIL’ BRANDIRead More

Read more
BT17: 4″ 1913 Picatinny Rail
$34.95

BT17: 4″ 1913 Picatinny Rail

The BT17 – 4″ 1913 Picatinny Rail will accommodate hole patterns with a center to center spacing of 2.2 – 3.5″ with a FLAT back to accommodate flat surfaces.

A standard sling stud and sling stud spacer or two button head machine screws can be used as a fastener. NO HARDWARE IS INCLUDED. See BT1517 to attach this rail to the forearm of standard rifle stocks.

Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish. Available in black only.

Weight: 1.20 ounces

Read more
BT15: 3.35″ 1913 Picatinny Rail
$34.95

BT15: 3.35″ 1913 Picatinny Rail

The BT15 – 3.35″ 1913 Picatinny Rail will accommodate hole patterns with a center to center spacing of 1.76 – 2.78″ and a relieved back to accommodate curved surfaces.

A standard sling stud and sling stud spacer can be used as one fastener or two button head machine screws can be used. NO HARDWARE IS INCLUDED. See BT1517 to attach this rail to the forearm of standard rifle stocks.

Machined to Picatinny rail standards from 6061-T6 aluminum with Mil-Spec Type III Class 2 finish. Available in black only.

Weight: 0.92 ounces

Read more
BT22 Leg Extensions
$49.99

BT22: Atlas Leg Extensions

The BT22 Atlas Leg Extensions are easily installed to any V8, PSR or CAL model Atlas Bipod with the press of a stainless steel plunger. They provide an additional 3 inches of elevation and accept any of our optional V8, PSR or CAL feet. Sold as a pair. Available in black only. NSN 1005-01-641-0369

Weight: 1.8 ounces

Product will work on V8, PSR and CAL models only.

Read more
BT32: Atlas Rubber Feet
$19.95

BT32: Atlas Standard Rubber Feet

The BT32 Atlas Standard Rubber Feet are standard equipment on all V8, PSR or CAL model Atlas Bipods. They are easily installed with the press of a stainless steel plunger. Sold as a pair. Available in black only.

Weight: 1.0 ounce

These fit atlas V8, PSR & CAL bipods.

Read more
