Weatherby 307 Action

Original price was: $750.00.Current price is: $599.99.





Weatherby 307 Action

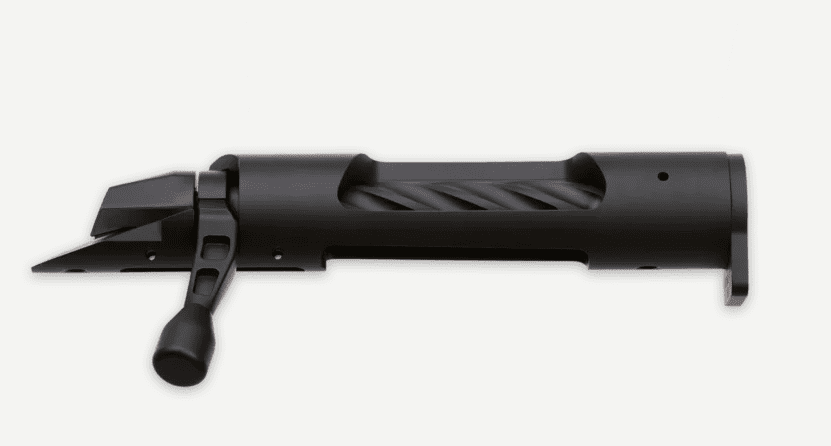

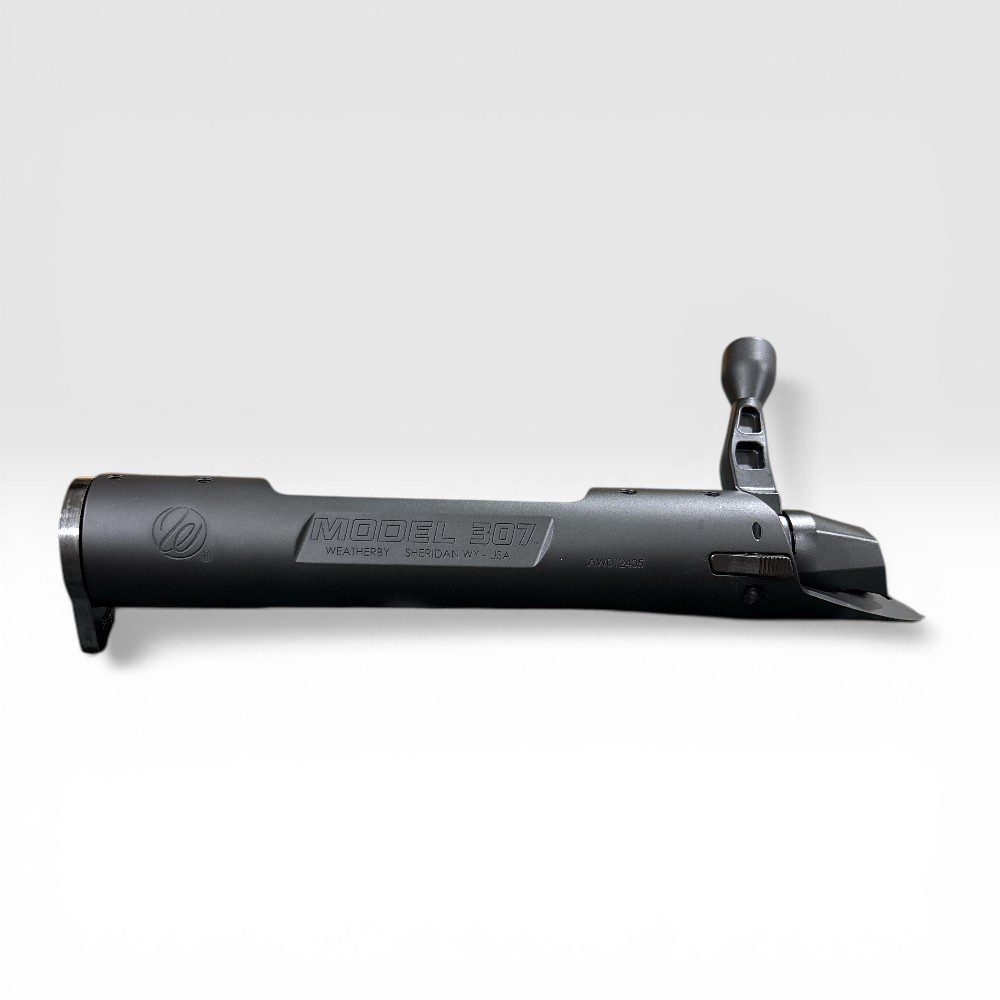

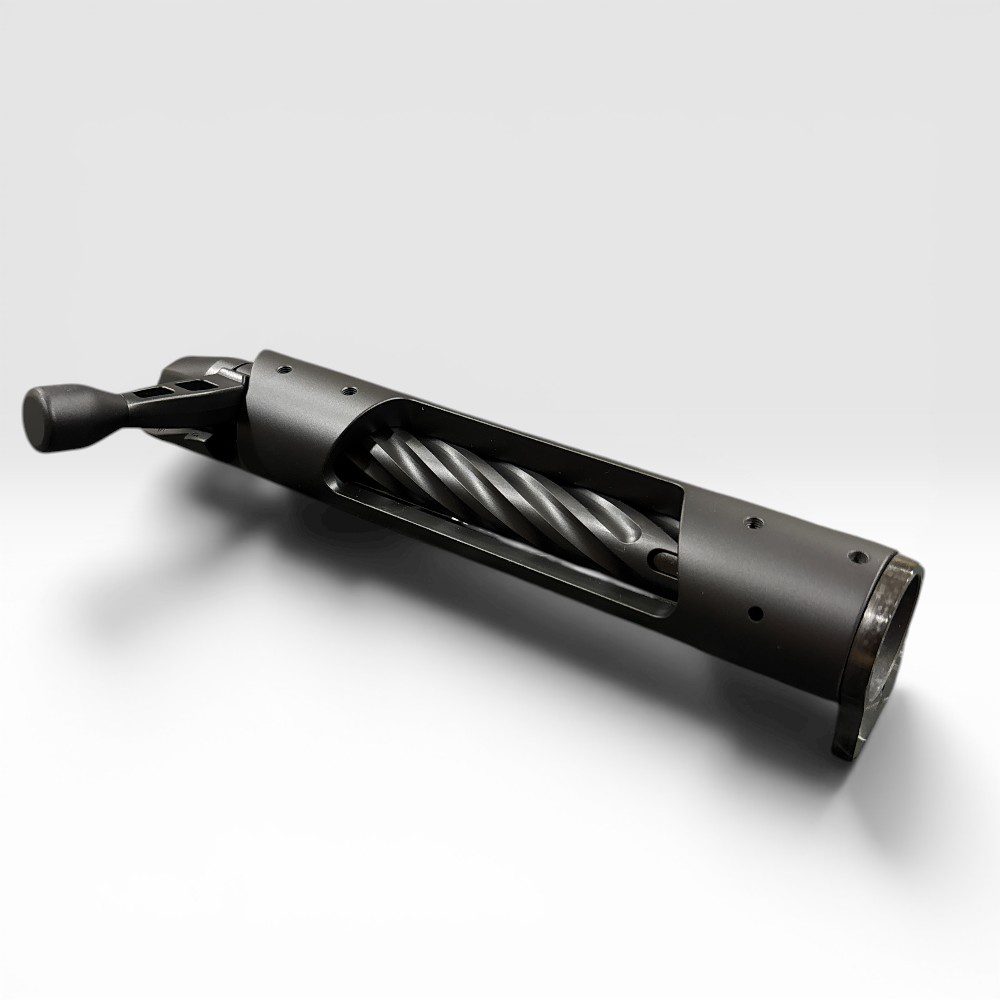

Weatherby Model 307 Action
The Model 307 action features a spiral fluted bolt with a reliable M16 extractor. That means positive extraction and smooth cycling shot after shot. The tool-less takedown feature is ideal for in the field maintenance and at home cleanings. The bolt knob is threaded (5/16×24 thread pitch) and ready for an aftermarket knob of your choice.
With a similar footprint to the popular Remington® 700® platform, Model 307 is compatible with most aftermarket 700 accessories, including triggers, stocks, and bottom metals. This gives the builder unlimited ability to build a truly custom rifle.
The bolt release button was designed to sit high on the receiver to make sure it fits Rem 700 aftermarket stocks and chassis.
The action is tapped and ready for scope mounts or a picatinny rail, it is threaded for 8-40 screws and is compatible with Stiller/Lone Peak Savage® mounts.









TECH SPECS

Overall Length
Short Action – 7.9″
Long Action – 8.7″

Weight
Short Action – 1.65 lbs
Long Action – 1.78 lbs

Bolt Face Sizes
Short Action Standard – .473″
Long Action Standard – .473″
Long Action Magnum – .543″

Bolt Throw
90 degree throw

Bolt Knob Threads
5/16″-24

Headspace
.899″ +/- .000 (Bolt Face to Recoil Lug)

Breech Dimensions (Counterbore)
.740″ depth (measured from Tenon Shoulder)
.715″ inner diameter

Tenon Threads
1-1/16″-16, .880” long (Standard REmington 700®)

Action Screws
1/4″-28

Mag Box Lengths
Short Action – 2.97″
Long Action – 3.95″ (Allows the use of Wyatt’s extended magazine boxes & CIP Length AICS magazines).



Model 307™ Builders Action – Weatherby, Inc.

J&A Outdoors – Firearm Solutions – Shooting Products

Configuration

Short Action 223, Short Action 308, Short Action Magnum, Long Action Standard, Long Action Magnum, Short Action 308 Tungsten
